    200 400A 630A Single Pole High Voltage Vacuum Contactor

    Ask Lasest Price
    Brand Name : GUOGUANG
    Model Number : JCZ5-12/single pole
    Certification : ISO9001:2015
    Price : negotiation
    Supply Ability : 100 Unit/Units per Month
    Delivery Time : 5-8Work day
    • Product Details
    • Company Profile

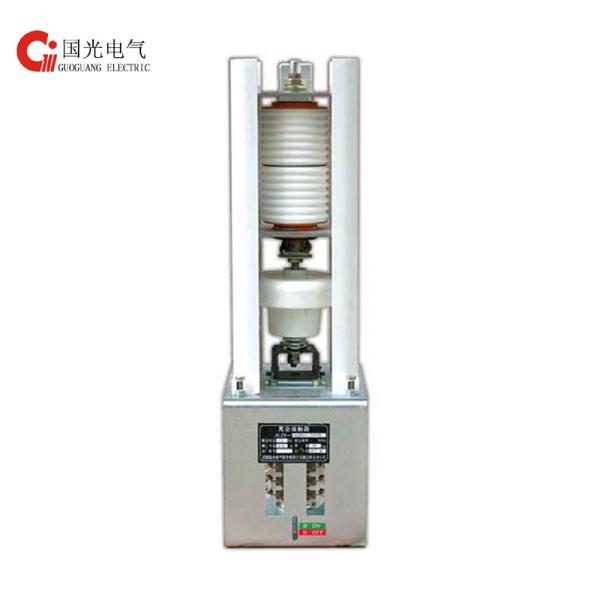

    200 400A 630A Single Pole High Voltage Vacuum Contactor

    JCZ5 Single Pole Vacuum Contactor
    Products Description

    JCZ Serial Single Pole High VoltageVacuum Contactor is 50Hz, one-phase, indoor control equipment. It is used in the electricity system of and under 7.2(12)kV, as well as operating of 200A, 400A, 630A and 800A. It featured in operating switch on & off high voltage equipment frequently. It can be used in switching middle voltage three-phase motor, transformer, reactor and capacity. It can be compacted into 2 poles, 3 poles, 4 poles and N poles.
    2.Parameters

    ItemParameter
    TypeJCZ-7.2JCZ-12
    Rated Voltage (kV)7.212
    Rated Current (A)200,400,630,800200,400,630,800
    Rated Turn-on Current (A)2000,4000,6300,80002000,4000,6300,8000
    Rated Interrupted current in Max. (A)1600,3200,5040,64001600,3200,5040,6400
    4s Rated Thermo-reliable Current (A)2000,4000,6300,80002000,4000,6300,8000
    1min Industrial Frequency Bearing Voltage (kV)3242
    Thunder Stroking Bearing Voltage (kV)6075
    Semi-wave Permission Pass Current (kA)4050
    Mechanical LifetimeMechanical Keeping30*1000030*10000
    Electrical Keeping10000001000000

    Electricity

    Lifetime

    AC-325*1000025*10000
    AC-410*1000010*10000
    Operation Voltage (V)DC220/110, AC220/110DC220/110, AC220/110
    Operation Current (A)DC6A/DC3.5ADC6A/DC3.5A
    Switch-off Coil Trip Current (A)DC2.5A/DC1.5ADC2.5A/DC1.5A
    Keeping Current (A)DC0.45A/DC0.22A

    DC0.45A/DC0.22A


    Low Price AC Contactor


    Our Advantages
    Low Price AC Contactor
    Low Price AC Contactor
    Low Price AC Contactor
    Product packaging
    Low Price AC Contactor
    Certifications
    Low Price AC Contactor
    Company Profile
    Low Price AC Contactor
    Low Price AC Contactor
    FAQ
    FAQ
    Q: How could I get price from you?A: Send us the detail like size, weight, the design, etc. Our sales team shall forward you the prices with 12 hours.Q: Does the OEM available? A: We can produce the products as your design. Q: How long it will take to open a new mould? A: 30~35 days. Q: What kind of artwork are available for open a mould? A: AI design or CDR design Q: Do you inspect the finished goods? A: Yes, our QC will inspect products in every step of production. Q: What would be the payment terms? A: 30% T/T in advance as a bond, the balance 70% against documents.
